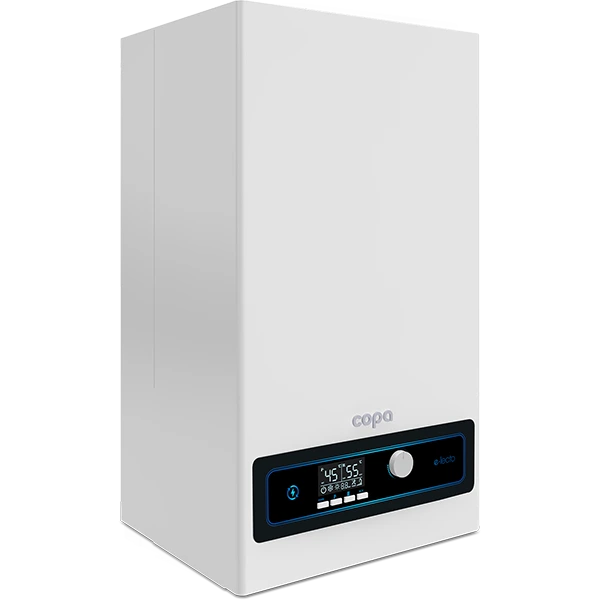

e-Lecto
Electric Combi
- CO2 Free Electric Energy
- Environment Friendly
- Ergonomic, Aesthetic and User Friendly Control Panel
- Fast heating and hot water usage
-
Guarantee2 Years *Only valid in Türkiye
-
Energy Efficiency ClassC Class
-
Capacity Options9 – 12 – 15 – 18 – 21 – 24 kW
-
Sound Level38 dB
-
Compact Dimensions700 mm x 400 mm x 330 mm
-
General Features
-
Minimal Dimensions
-
Electric Energy Use
-
Special Alloy Resistance
-
Possibility of Use with On-OFF and Modulating Room Thermostats
-
High Modulation Rate
-
Instant Domestic Hot Water
-
Comfort Mode
-
Automatic By-Pass System
-
Automatic Air Vent
-
Freeze Protection
-
More Sensitive and Safe Current Control with Dual NTC System
-
Safe Use with Contactor and Fuse
-
Ease of Service and Maintenance
-
Operating Voltage Single Phase and Three Phase Compatible
-
-
Technical Specs
MODEL Unit E-LECTO
9 kWE-LECTO
24 kWSupply Voltage VAC 1~230 / 3~400 3~400 Nominal Power kW 9 24 Minimum Heating Output kW 2 2 Nominal Current (Three-Phase) A 22 35 Domestic Hot Water Operating Pressure (min./max.) bar 3 3 Protection Class - IPX4D IPX4D Energy Efficiency Class (Hot Water Efficiency Class) M/C L/C Energy Efficiency Class (Space Heating) D D Sound Level dB 41 43 Gross Weight kg 32 34 Dimensions (H x W x D) mm 700x400x330 700x400x330
