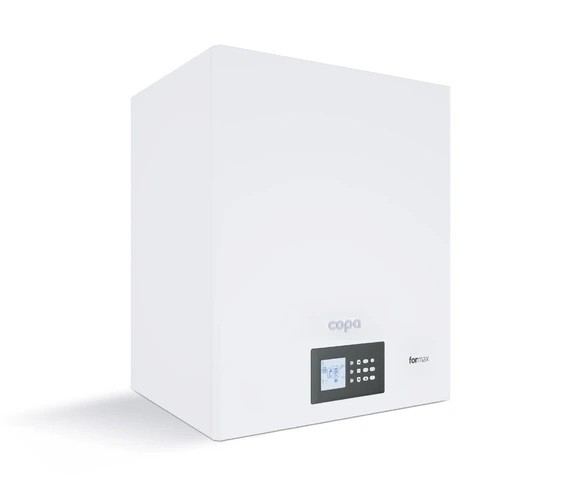

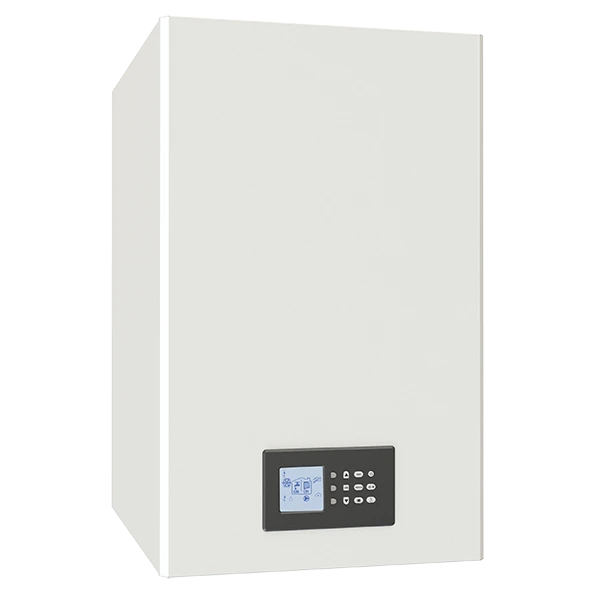

Formax
Condensing Wall Hung Boiler
- Class A, High Seasonal Efficiency
- Compliant with ERP Directive

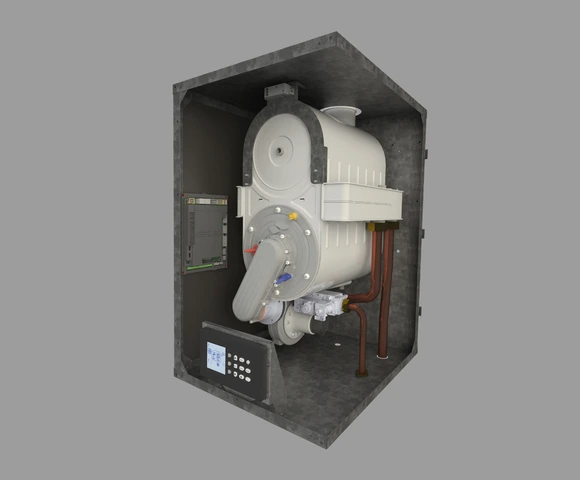

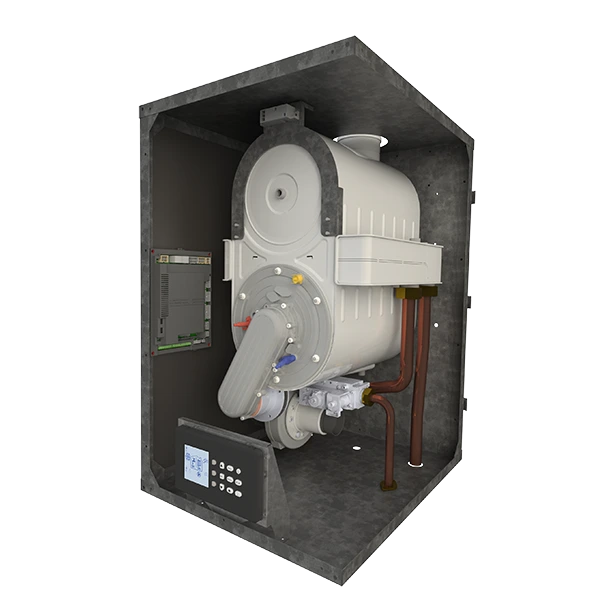

- Stainless Steel Main Heat Exchanger
- Chimney Chimney Valve
- Full Hermetic Cabinet
- Solar Panel Systems
- Controllability
- Room Thermostat Compatible
-
Guarantee2 Years *Only valid in Türkiye
-
Energy Efficiency ClassA Class
-
Ease of Installation and Maintenance
-
Capacity Options65–90–100–120–150
-
General Features

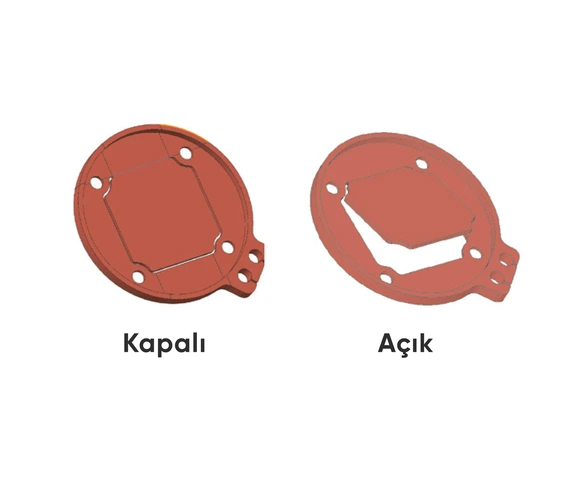

Internal Chimney Flap
The flue flap, which provides more safety and more regular modulation, is located between the fan and heat exchanger manifold and is integrated into Formax as standard.
Peer Ageing Technology
Formax boilers work continuously all together, not one by one, according to the need. Thanks to the command from the main boiler, all boilers regulate their power equally and increase the boiler life.
High Capacity Cascade Facility
Ability to reach 1070 Kw cascade capacity output with one main controller
High Energy Efficiency
With the high quality components and production processes used, Formax provides 108% efficiency.
-
Access to Automation Systems
It can be connected to building automation systems (0-10V, OpenTherm, ModBus) without the need for any intermediate elements via the main control card.
-
Organise the Comfort
Possibility to control 7 different heating zones from a single main boiler with additional zone control cards.
-
-

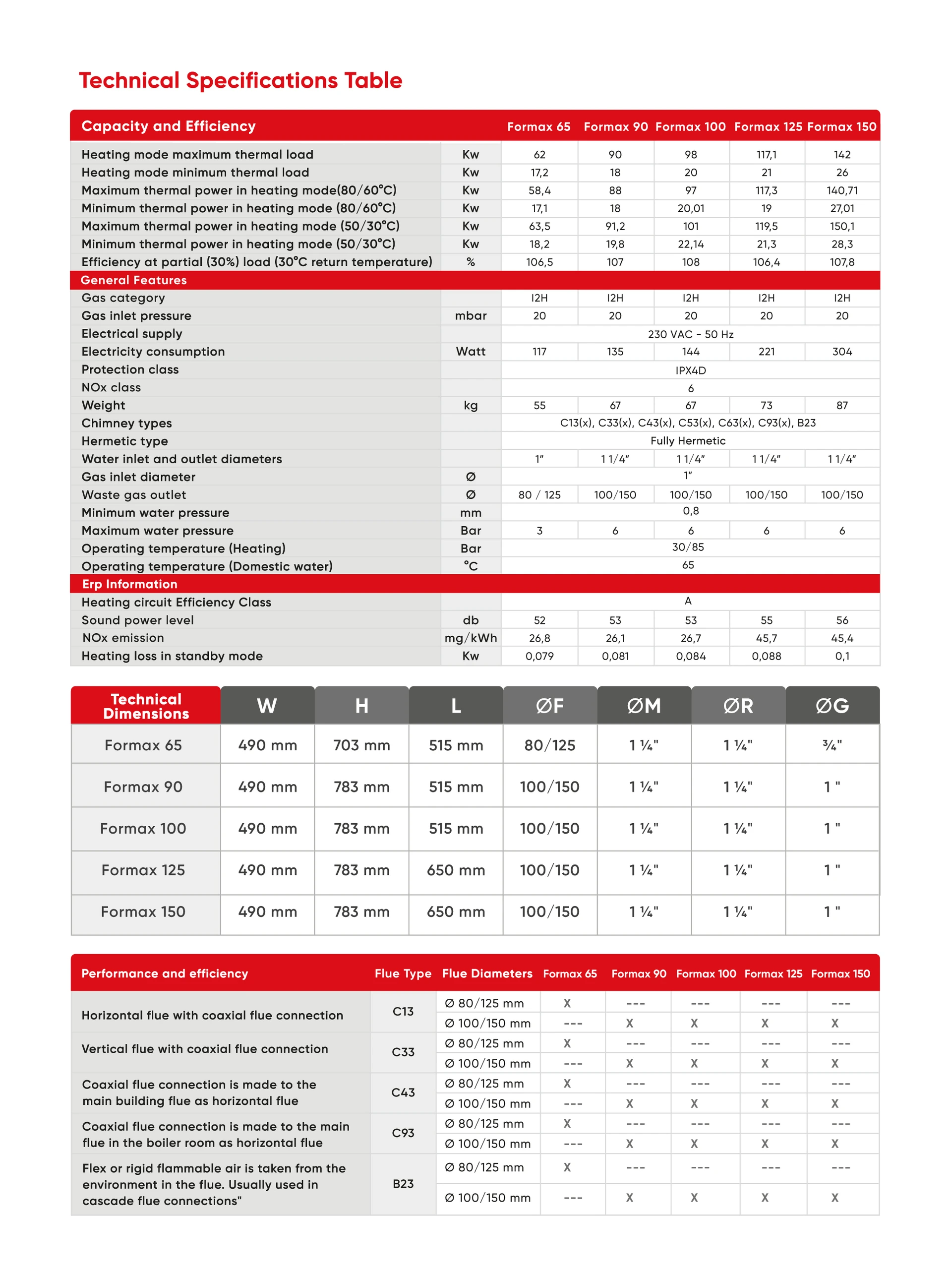

Technical Specs
MODEL FORMAX 65 FORMAX 90 FORMAX 100 FORMAX 125 FORMAX 150 Maximum Thermal Load in Heating Mode kW 62 90 98 117,1 142 Minimum Thermal Load in Heating Mode kW 17,2 18 20 21 26 Maximum Thermal Output in Heating Mode (80/60°C) kW 58,4 88 97 117,3 140,71 Minimum Thermal Output in Heating Mode (80/60°C) kW 17,1 18 20,01 19 27,01 Maximum Thermal Output in Heating Mode (50/30°C) kW 63,5 91,2 101 119,5 150,1 Minimum Thermal Output in Heating Mode (50/30°C) kW 18,2 19,8 22,14 21,3 28,3 Efficiency at Partial (30%) Load (30°C Return Temperature) % 106,5 107 108 106,4 107,8 General Characteristics Gas Category I2H I2H I2H I2H I2H Gas Inlet Pressure mbar 20 20 20 20 20 Power Supply Electricity Consumption Watt 117 135 144 221 304 Protection Class IPX4D NOx Class 6 Weight kg 55 67 67 73 87 Flue Types C13(x), C33(x), C43(x), C53(x), C63(x), C93(x), B23 Hermetic Type Full Hermetic Water Inlet and Outlet Diameters 1" 1 1/4" 1 1/4" 1 1/4" 1 1/4" Gas Inlet Diameter Ø 1" Flue Gas Outlet Ø 80 / 125 100/150 100/150 100/150 100/150 Minimum Water Pressure bar 0,8 Maximum Water Pressure bar 3 6 6 6 6 Operating Temperature (Heating) °C 30/85 Operating Temperature (Domestic Water) °C 65 ErP Information Heating Circuit Efficiency Class A Sound Power Level dB 52 53 53 55 56 NOx Emission mg/kWh 26,8 26,1 26,7 45,7 45,4 Standby Heat Loss kW 0,079 0,081 0,084 0,088 0,1
